Dual-Eye Slings

dual eye sling

Dual-Eye Slings are the toughest, most versatile, heavy duty nylon slings available anywhere.

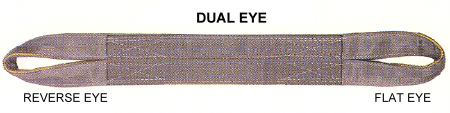

Dual Eye slings have a flat eye on one end and a reverse eye on the other end with eye widths equal to 1/2 the body width.

Dual Eye slings are the most versatile of all slings for choker and basket hitching.

The flat eye is ideal for passing under loads or through small openings where there is minimum clearance. The reverse eye is ideal for choker hitches and also gives the sling extra service life.

When reversed, it allows the other side of the eye and sling body to be used as a second wearing surface. Both sides of the sling body and the sling eyes are reinforced with grey Cordura wear pads.

U.S. Patent #3368837

Reverse Eye & Flat Eye

Width:
2 inch
Eye Length
10 inches
Eye Width
1 inch
Rated capacity:
Choker @ 30° = 3,680 lbs.
Vertical @ 90° = 4,600 lbs.
Basket @ 90° = 9,200 lbs.

Reverse Eye & Flat Eye

Width:
2 inch
Eye Length:
12 inches
Eye Width:
1-1/2 inches
Rated capacity:
Choker @ 30° = 6,160 lbs.
Vertical @ 90° = 7,700 lbs.
Basket @ 90° = 15,400 lbs.

Reverse Eye & Flat Eye

Width:
3 inch
Eye Length:
12 inches
Eye Width:
1-1/2 inches
Rated capacity:
Choker @ 30° = 5,600 lbs.
Vertical @ 90° = 7,000 lbs.
Basket @ 90° = 14,000 lbs.

Reverse Eye & Flat Eye

Width:
3 inch
Eye Length:
12 inches
Eye Width:
1-1/2 inches
Rated capacity:
Choker @ 30° = 9,360 lbs.
Vertical @ 90° = 11,700 lbs.
Basket @ 90° = 23,400 lbs.
